Mirai Pole

Mirai Pole

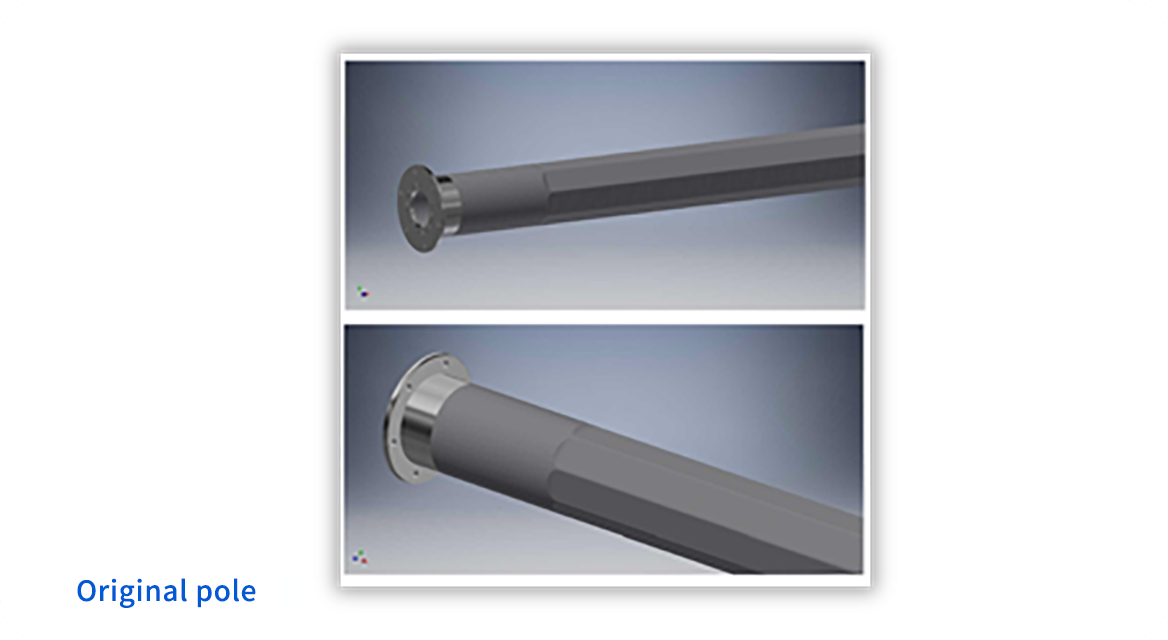

• Original poleThe octagonal pole can be coated in almost any color, and you can choose multiple functions you want from a wide range of options to add.



  Dimensions	240 mm in diameter x 5,000 mm above ground (2 m below ground)
  Weight	430kg
  Load capacity	6.0kN The pole can withstand 600 kg of horizontal force applied at the top.
  Coating color	Can be coated in any color of your choice
  Features	- The top is flanged to allow the installation of various devices. - Cables can be hidden inside the pole. - Pre-stressed concrete structure: 　The pre-stressed steel in the concrete makes the structure resistant to cracking.

• Design coverThe cover hides antennas and other equipment mounted inside from view.



  Dimensions	1,000 mm in diameter x 1,000 mm
  Weight	About 32kg
  Wind speed resistance	Designed for a ground surface roughness classification*1 of III and a reference wind speed of 38 m/s.
  Snow load capacity	130 cm snow load on roofs
  Weatherability	Designed for 50 years of weather resistance*2
  Material	Highly RF transparent GFRP GFRP(Glass Fiber reinforced Plastics)
  Coating color	Any color specified by Japan Painting Contractors Association (JPCA)
  Features	- The cover has openings in the top and bottom to allow wind, rain, leaves, etc. to pass through. - The cover is divided into four parts and only the necessary parts can be opened/closed.

  *1：Ground surface roughness classification: refer to the Ministry of Construction Notification No. 1454 in 2000 by Ministry of Land, Infrastructure, Transport and Tourism
  *2：Weatherability: calculted based on Guidelines for Design and Construction of FRP footbridges published by Japan Society of Civil Engineers Actual values may differ.
