What is an LPWA module?
By incorporating it into your devices, you can take advantage of power-efficient and long-range communication capabilities provided by LPWA networks. Its small size, low power consumption, and cost-effectiveness make it perfect for enhancing Sub-GHz wireless communication in various sensor equipment and devices.
A combo module compatible with both Sigfox and LoRa
*LSM100A is a product of SJI CO., LTD.
*KCME is a distributor of SJI CO.,LTD.
Features
-

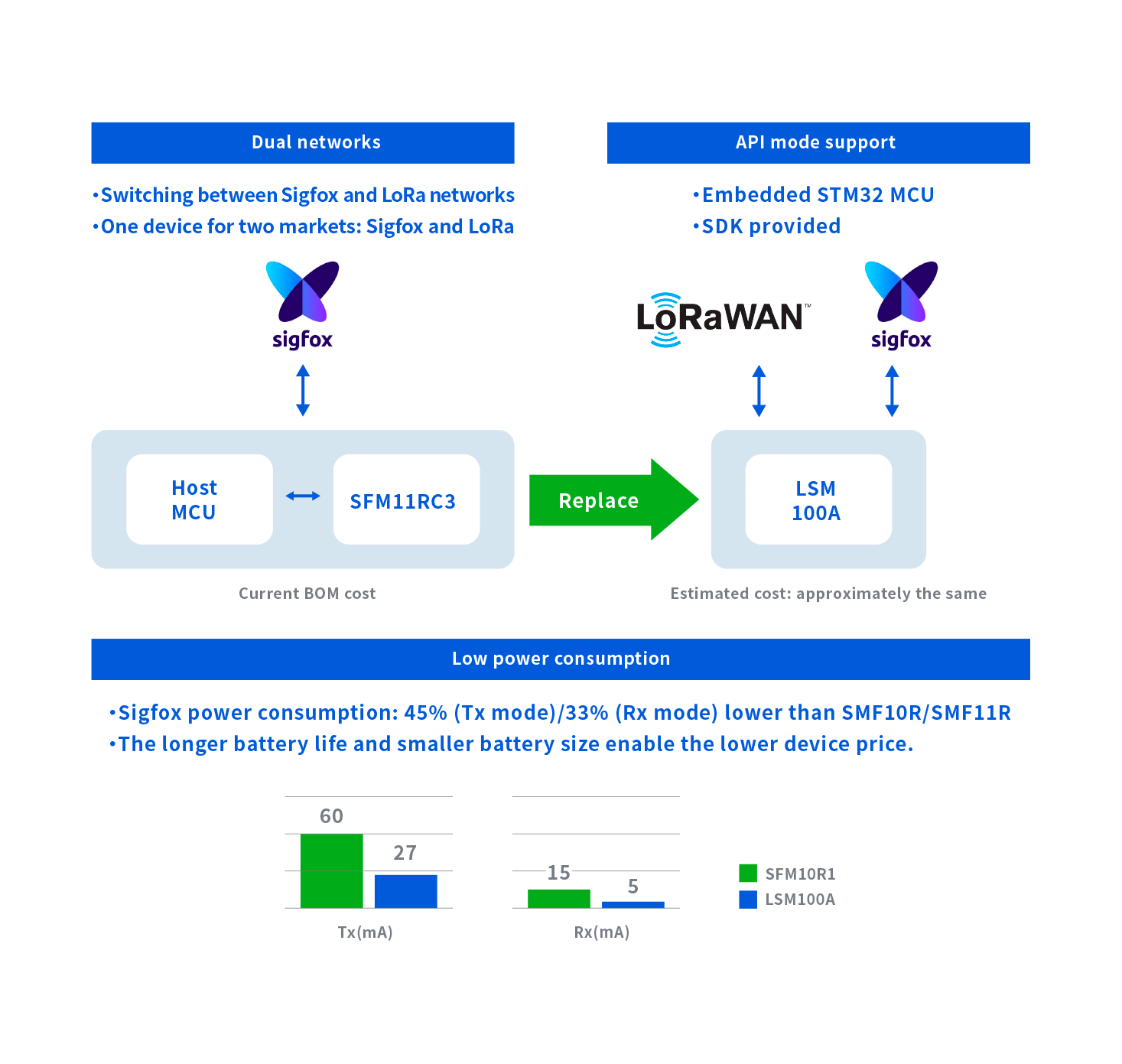

01 Compact and power-efficient
45% reduction in Tx power consumption and 33% reduction in Rx power consumption compared to conventional products.
-
02 Compatibility with various Sigfox regions
anned support for Sigfox frequency bands RC1/RC3/RC5/RC6/RC7, enabling global development.
-
03 API mode support
Compatible with API (Application Programming Interface), allowing integration of customer firmware with the module.
Functions
-
Switch between Sigfox and LoRa networks.
-
Provided in a through-hole package for easy soldering onto your PCB.
-
The module offers the flexibility to utilize a built-in MCU (Microcontroller Unit).
Specifications
| Dimensions | W14.0 x H15.0 x D2.8mm (typical) |
|---|---|
| Minimum receiver sensitivity | -124dBm |
| Output interface | UART |
| Input Voltage | +1.8V〜+3.6V |
| Maximum transmit power | +15dBm |
Actual use cases
-
Public utility usage notifications
- Industry
- Public utilities, electricity, gas
- Number of Devices
- 1,000 to 200,000
For the purpose of determining electricity and gas fees, meter readers traditionally visit consumers' homes monthly for manual readings. In our effort to modernize these visual inspections for a transition to a digital transformation (DX), we explored various methods. However, challenges such as communication costs and sensor device battery life emerged. To address these issues, we leveraged the capabilities of "Sigfox," a technology enabling broad area coverage. This allowed us to achieve energy savings through minimal data delivery and reduced device battery consumption. Furthermore, we streamlined operations, ensuring sensor device maintainability, and successfully embraced digital transformation.
※LPWAは、Low Power Wide Areaの略称です。
※Sigfoxとは、フランス発祥の通信技術でIoT⽤のネットワーク規格です。
